What Architects Ought to Know About ADA-Accessible Shower Design

Designconcept123.com - 22 July 2025 - 2:40 pm

Designers of bathrooms are never merely designing for looks particularly if it is for accessibility. To architects, having knowledge of the nitty-gritty of ADA-accessible shower design is not about indicia of requirements. It’s about designing spaces that provide people with dignity, independence, and safety no matter what their physical ability is. The Americans with Disabilities Act (ADA) defines precise guidelines for shower space accessibility within public and multi-unit residential buildings. Even in single-family homes, however, these specifications can act as a template for wonderful, inviting design. Whether you’re constructing a new commercial building or retrofitting an old building, knowledge of these regulations can be the difference-maker. Let’s consider what architects must take into account.

Dimensions and Layout Do Mean More Than You Think

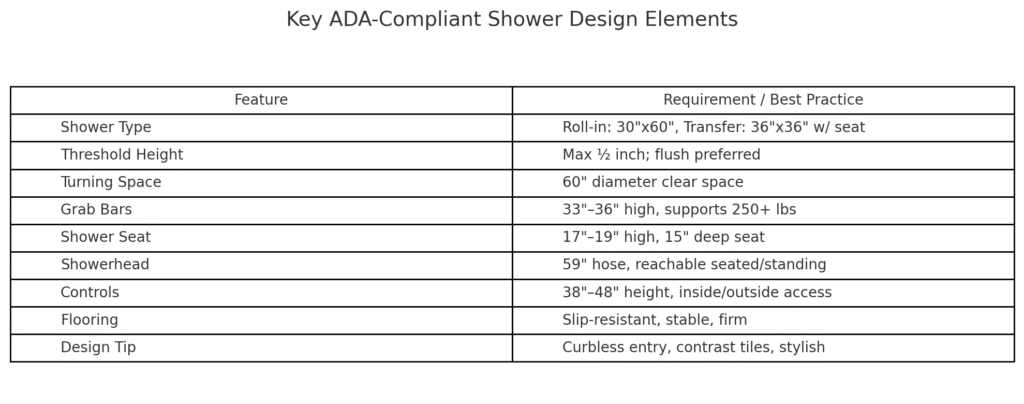

The first thing to keep in mind: size and space do count. There are two broad types of ADA-compliant showers transfer and roll-in. Roll-in showers, for people who stay in wheelchairs, must be a minimum of 30″ x 60″ and curb- and barrier-free. Transfer showers must be no smaller than 36″ x 36″ and must have a seat for lateral transfers. But it’s not only the shower stall that counts the space around it does as well. There must be a minimum 60-inch turning space in proximity so that wheelchairs have enough room to turn. Shower thresholds cannot be more than ½ inch, and preferably level with the floor to make entry simple. It’s more about designing smooth, effortless passage through the space.

More Than a Function: Fixtures and Hardware

And then fixtures and hardware come in, which have a huge role in ensuring a shower is fully accessible. ADA specifications call for horizontal grab bars to be mounted between 33 and 36 inches from the shower floor. They must be at least 250 pounds of force-resistant and ideally placed in strategic locations to aid in balance and transfer. A fold-down or permanently mounted seat is required for showers or tub transfers, mounted 17 to 19 inches above the floor. And one of the most critical components? The showerhead. It ought to be equipped with a 59-inch adjustable hose and should be accessible from the sitting or standing position. Fix it on a sliding bar if it is possible, so that it can be shifted around for users to adjust. Thoughtful design and heavy-duty construction can go a long way in making the shower comfortable and safe for regular use.

Beyond Compliance: Make It Beautiful and Universal

Too many individuals believe that accessibility is a compromise issue when it relates to appearance. Not exactly. All the currents of universal design today are all about how to wed aesthetics and functionality, and architects are most qualified to stage that. Consider handsome, streamlined grab bars that serve as towel racks as well. Curbless showers with linear recessed drains create smooth transitions and contemporary style. Want to go further? Install contrasting tile colors for visual distinction, or motion-activated lighting for convenience. ADA accessibility is your beginning but it’s universal design that adds brilliance to your work. It’s designing for all: from aging-in-place residents to children to the recovering patient. And the surprise? When accessibility is done right, it simply looks like good design.

Final Thoughts: Designing with Empathy

Ultimately, ADA-compliant shower design is not just about code compliance it’s about designing with heart, vision, and imagination. When you do your work from a place of appreciation for differences in need, you’re not just creating code-satisfying places you’re creating places of welcome for all people. As our populations grow older and being inclusive only more of an issue, understanding how to design accessible showers will only be an engaged competency for every architect. So when you’re next beginning to plan out a bathroom space, don’t simply ask yourself “Is this ADA-compliant? but also, “Would this be safe and comfortable for a person with different abilities?
